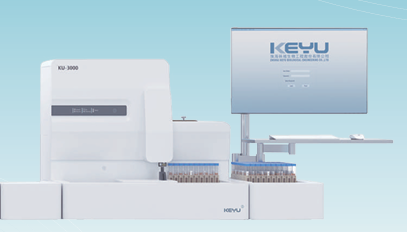

Automatic Urine Analysis System KU-3000 is a Fully automated and integrated Urine Analyzer, which can analyze urine sample in totality. KU-3000 analyses urine for Physical/ Chemical and microscopic parameters. It is based on various ...
Automatic Urine Analysis System
KU-3000 is a Fully automated and integrated Urine Analyzer, which can analyze urine sample in totality. KU-3000 analyses urine for Physical/ Chemical and microscopic parameters. It is based on various principles including chemical strip method, imaging and Artificial Intelligence for particle identification.
The throughput of the equipment is 60-80 samples for formed elements and approx. 220 samples for chemistry per hour. KU-3000 is simulation of gold standard manual operation by the “plane microscope camera + AI recognition” method, 5MP camera guarantees the definition of images and realizes more accurate and efficient recognition. This not only ensures reliable identification and pre classification of most formed elements but also makes images available for further review and teaching purposes. Dry chemistry analysis by KU-3000 ensures no cross contamination between adjacent strips.
Features
Physical
Specific gravity
Conductivity
Turbidity
Color
Dry Chemistry
12 & 14 parameters options
Precise computer-controlled dispensing volume of the sample
Accurate control of reaction time
The concentration gradient value of each item is obtained by AI algorithm
The image of the test trip will be saved in the computer, it is traceable.
Formed Elements
Multilayer Shooting
KU-3000 imaging system takes 8-layer images of every element and hence makes available the inner complexities of the element. Thus, ensuring the identification to the best quality.
Traceable test results
Images are available to make sure the user can revisit them as per convenience and all reports are traceable.
powerful Database
AI engine is the most updated one, and huge amount of data is used to train the AI engine
Gold Standard
KU-3000 is basically automated simulation of Gold Standard method i.e. Microscopy.
Compact
KU-3000 is compact in size and consumes very less space .
Comprehensive Analysis
- Four physical indexes (standard configuration)
- Comprehensive formed element substances
Accurate
- High-definition morphology images backed with powerful AI
| Characteristic | Details |
| Dimensions | W778 x D713 x H650 mm |
| Weight | 120 Kg (approx..) |
| PC Operating System | Inbuilt |
| Power Supply | 220 V +-10, 50/ Hz |
| PC interface | RS 232 Port |
Technical Specification of Mispa i60
| Characteristic | Details |
| Sample Volume | 3 ml |
| Reporting Mode
Sample Treatment |
Semi quantitative//microliter & /HPF
Automated Mixing & flow cell filling and emptying |
| Counting Cell | High precision constant flow counting cell |
| Detectability | 95% or higher |
| Accuracy | 98 % or higher |
Safety and Maintenance Protocol of KU-3000
Periodic maintenance of the unit is to be performed by the service engineer of Agappe.
- KU-3000 is for indoor use only.
- The Installed site should be free of dust and away from direct sun.
- The site should be free of corrosive and inflammable gas.
- The bearing or the ground should be free from vibration
- Cover the instrument with dust cover when not in use.
- The environment should not have high humidity levels
